Agri-Hawk Drone 50

A powerful 50L agricultural drone built for precision spraying.

Agri-Hawk Drone 50 Specifications

Core Capabilities

Durable Casing

Dust and tamper-resistant carbon fiber frame.

Multi-Mode Connectivity

Wi-Fi, 4G, and Bluetooth connectivity options.

Encrypted Communication

Ensures secure data transmission over all networks.

Agri-Hawk Drone 50 Core

Power Efficient

Operates on dual battery system for extended usage.

Custom Access Logic

Intelligent control with modular configuration options.

High-Precision Sensor

Supports wind-resistant flight and high-accuracy mapping.

Feature Spotlights

Experience reduced maintenance time, enhanced reliability, and precise navigation — all designed to simplify operations and maximize productivity.

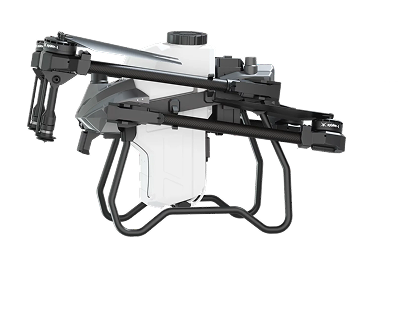

Quick-Release Landing Gear

Quick-Release Landing Gear, Fast Maintenance

Quick-detach landing gear enables rapid maintenance and efficient operation during demanding agricultural work.

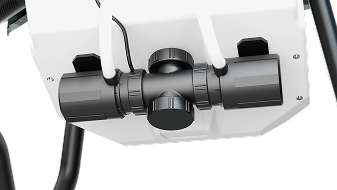

Dual Water Pumps

Dual Water Pumps Boost Flow and Efficiency

Dual water pumps provide higher flow for efficient spraying and transport operations, enhancing agricultural productivity.

Drone Components & Assembly
Every Agri-Hawk Drone kit includes precision-engineered components for efficient assembly — including the main carbon fiber frame, motor arms, propellers, pump, control modules, cables, and the remote control unit. Designed for easy maintenance and modular upgrades, ensuring long-term reliability in demanding agricultural operations.
Drone Components
Dimensions & Physical Specifications
Drone Dimensions Unfolded and Folded
2919 mm
3080 mm
872 mm
840 mm
1240 mm
872 mm
Detailed Technical Specifications
Aerial Platform
Dimensions (folded)1240*840*872 mm
Dimensions (unfolded)2919*3080*872 mm
Weight (excluding battery)34 kg
Weight (including battery)49 kg
Waterproof GradeIP67
Flight Parameters
Max. Take-off Weight99 kg
Max. Flight Speed15 m/s
Max. Flight Altitude≤ 20 m
Hovering Duration28 mins(with no-load)
Hovering Duration7 mins(with full-load)
Spraying System
Liquid Tank
Capacity50 L
Nozzle TypeCentrifugal Nozzles
Quantity2
Spray Width8~20 m
Atomizing Size30~500 µm
Pump
Quantity2
Max. System Flow Rate20 L / min
Spreading System
Capacity70 L
Waterproof GradeIP67
Applicable Granule Size0.5~10 mm
Camera
Camera TypeHD FPV Camera
Video Resolution1920*1080 px
Night NavigationHigh Brightness Night Flight Lights
Propulsion System
MotorMax. Tension (single motor) 56 kg
Foldable PropellerModel 5620
Electronic Speed ControllerMax. Continuous Operating Current 160 A
Obstacle Avoidance System
Front and Rear Obstacle Avoidance Radar
Quantity2
Relative Height of Safe Obstacle Avoidance≥ 2 m
Relative Speed of Safe Obstacle Avoidance≤ 8 m/s
Terrain-following Radar
Quantity1
Max. Gradient (at flight speed of ≤ 2 m/s)45°
360° Obstacle Avoidance Radar
Quantity1
Obstacle Avoidance Angle (upward)360°
Remote Control
ModelH12 (Android OS)
Remote Controller5.5-inch Screen, 1920×1080, 1,000cd/m²
Max. Signal Range (no interference / obstruction)5 km
Operating Frequency2,400~2,483 MHz
Dimensions190*152*94 mm
Charging portTYPE-C
Duration6~20 H
Compatible DeviceH32X, H40X, H120, H160, Series M
Power System
Battery
Quantity1
Model18S 30000mAh
Rated Capacity78.3V/ 120A/ 9000W
Size275*120*330mm
Weight15 kg
Ambient Temperature for Charging- 40°C~65°C
Smart Charger
Quantity1
Charging Input110V-240V 9000W
Charging Output120A (single-channel charging)
Rated Power9000W
